Grip-Lok® Autofeed Tips & Tricks: Tool Setup “The Grip-Lok Autofeed Fastening System has been specifically developed to save labor on rigid insulation attachment projects. When properly setup and maintained, this tool will attach insulation up to 4x faster than bulk screws and washers. Phone: 616-454-3100 Email: sales@rodenhouse-inc.com Web: www.rodenhouse-inc.com Grip-Lok® Autofeed Fastening System: https://www.rodenhouse-inc.com/grip-lok-autofeed-fastening-system CHOOSING SCREW LENGTH AND TYPE: Script: “Before using the Grip-Lok® Autofeed Fastening System, you’ll first need to determine the proper screw length and type for your project. Our Grip-Deck® ceramic coated self-drilling screws are suitable for heavy gauge steel studs ranging in thickness from 12-18 gauge, while our Grip-Deck® HiLo thread screws are suitable for wood substrates. For steel stud substrates, we recommend that the screw be an inch longer than the thickness of the insulation plus any possible layers of exterior gypsum sheathing. For example, if you are attaching 1 ½” thick insulation direct to steel studs, you will need 2.5” collated Grip-Deck® self-drilling screws. If there is a layer of exterior gypsum sheathing sandwiched between the insulation and the steel studs then you would need the 3” long self-drilling screw. For wood substrates we recommend a Grip-Deck® HiLo screw that will provide at least 1 ¼” of penetration into the wood substrate. The Grip-Lok® Autofeed Fastening System currently fits screws up to 3” in length. For questions on screw length recommendations, call Rodenhouse at 616-454-3100. PHILLIPS OR SQUARE DRIVE: Make sure your tool has the correct driver bit properly inserted prior to use. Pushing back the slide on the front of the gun allows you to see whether it is a Phillips or Square drive bit. To change the bits, slide the red sliding button on the top of the gun while holding the nose piece back, then use your fingers to grab onto and slide out the drive bit. Insert the new bit, pull back on the red slide, tip the tool up, and pull the trigger to engage the bit. SCREW LENGTH SETTINGS: Prior to loading the Grip-Lok® Autofeed Tool with screws, you need to set the correct settings to match the length of the screws. This is easily completed by pressing the button and sliding the nose stem until it matches your screw length. LOADING & REMOVING COLLATED SCREWS: Depending on the length of screws, each strip has either 25 or 50 collated screws per strip, and two empty slots on either end. Take one end of the strip and start feeding it into the slot on the bottom of the tool. Slide the strip until the screw is the next slot in succession of operation. This tool is designed to index screws on the downstroke, so be sure the last empty slot is lined up with the bit. ADJUSTING DEPTH CONTROL: There is a setting module on the left side of the gun to help install Rodenhouse washers flush every time when set properly. To adjust the depth, hold the red button next to the white unlock symbol. While holding the red button, turn the dial clockwise for deeper washer embedment or counterclockwise for shallow settings. There is a moving dial to visualize depth settings. Be sure the washers are installed flat on the surface of the insulation to seal against air and moisture penetration. Be sure to avoid washer or screw overdrive which may puncture or tear the facer. NOSE CUP ADAPTORS: The Bullseye Nose Adaptor on the Grip-Lok® Autofeed Fastening System is specifically designed to fit our Thermal-Grip® ci Prong Washer. The Thermal-Grip® ci prong washers were developed with pre-spotting prongs to allow easy “on-the-wall” screw assembly. Simply press the washer into the insulation and match the Bullseye® nose cup adaptor over the raised hump on the washer. The Bullseye® Nose adaptor is also designed with magnets for use with Grip-Plate® Lath & Plaster Washers for lath and exterior gypsum sheathing attachment to wood or steel substrates. Simply place the galvanized steel washers centered on the magnetic nose cup and install the lath or gypsum sheathing with ease. Rodenhouse also provides unique Grip-Lok® nose cup adaptors available for building wrap attachment as well as mineral wool attachment. For more information on nose cup adaptors, call Rodenhouse at 616-454-3100. PRO TIP: After installing roughly 5 to 8 screws, bend the leftover strip piece up towards the front of the gun. This prevents the strip from getting lodged in the opening on top of the tool and jamming the slider. TECHNICAL SUPPORT: Your satisfaction with the Grip-Lok® Autofeed Fastening System is important to us. Rodenhouse has a team of fastener exerts ready to answer your questions or assist on your next job site. Give us a call or visit us online at rodenhouse-inc.com. Rodenhouse Incorporated. Global Strength. Personal service.

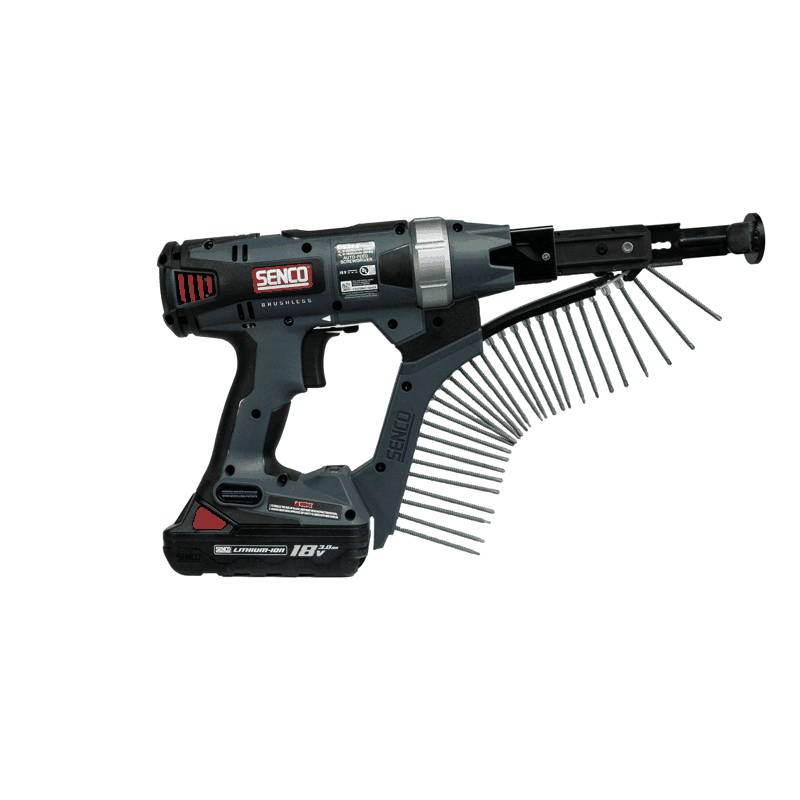

Grip-Lok® Auto-feed system with Bullseye® For rapid attachment of rigid insulation with our industry leading screws and washers, use the Grip-Lok® auto-feed system with Bullseye® adaptor. The auto-feed system is over 3 times faster than bulk fasteners when attaching into heavy gauge steel studs saving you time and money. The patented and patent pending Bullseye® nose adaptor automatically centers the tool on the pre-spotted Thermal-Grip® ci prong washer for rapid screw attachment. The depth adjustment of the screw gun helps prevent overdrive of the fasteners and ensures flush mounting on the surface of the insulation. For further questions, please contact Rodenhouse Inc. Website: http://rodenhouse-inc.com Autofeed Fastening System: http://rodenhouse-inc.com/products/bullseye-system/ Facebook: https://www.facebook.com/Rodenhouse-Inc-Fastening-Systems-674962019207488/?fref=ts www.rodenhouse-inc.com (T) 616-454-3100 gripline@rodenhouse-inc.com
